　　Operator Unit PP885R 3BSE069296R1

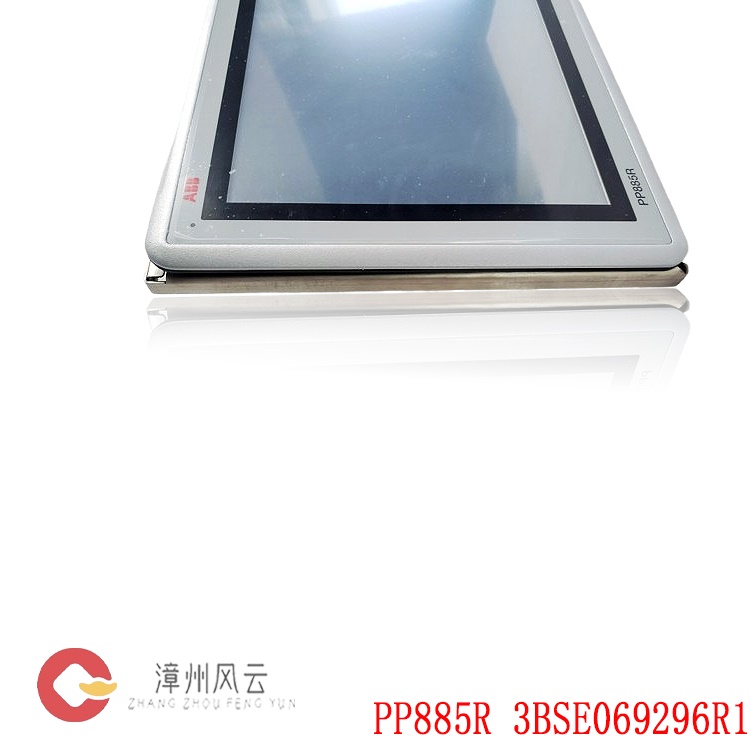

　　PP885R 3BSE069296R1 HMI (Human-Machine Interface) Operator Panel

　　I. Operating Principle

　　The PP885R 3BSE069296R1 is essentially an industrial HMI computer designed for harsh environments, facilitating information exchange between the human, the machine, and the process. The complete operational chain is: operator touch → panel HMI runtime → communication driver → controller → I/O module → field device. Conversely, field status, alarms, and trend data are transmitted back along the same path to be displayed on the screen.

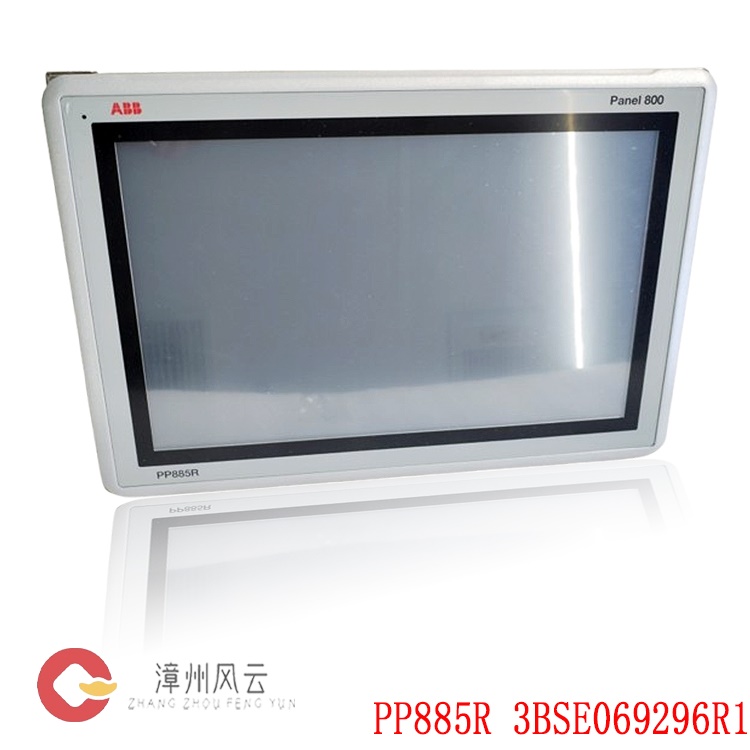

　　Display and Touch: Features a 15.4-inch TFT-LCD with a resolution of 1280×800 (16:10), 16 million colors, and LED backlighting. It offers a brightness of 450 cd/m² (the high-brightness model in the same series, PP886H, offers 1000 cd/m²) and supports dimming to below 1 cd/m²—a feature specifically designed for night navigation on ship bridges. The touchscreen utilizes analog resistive technology, offering resistance to liquids and oil contamination; it allows for operation while wearing gloves and boasts a touch lifespan of up to 5 million operations. Computing Platform: Intel Atom 1.0/1.6 GHz processor, 1 GB system memory, 4 GB SLC solid-state application storage, and built-in real-time clock; fanless design, 24 VDC power supply, with a typical power consumption of approximately 28 W.

　　Software Layer: Based on the .NET open platform and configured using ABB’s Panel Builder 800 engineering software; supports customization via C# scripting. Features comprehensive built-in HMI functionality, including alarm management, trend curves, data logging, recipe management, scheduling, audit trails, and user/user-group access control. As a high-performance model, it supports approximately 3,000 communication tags, 1,500 internal alarms, and 300 screens, while allowing up to 10 communication drivers to run simultaneously.

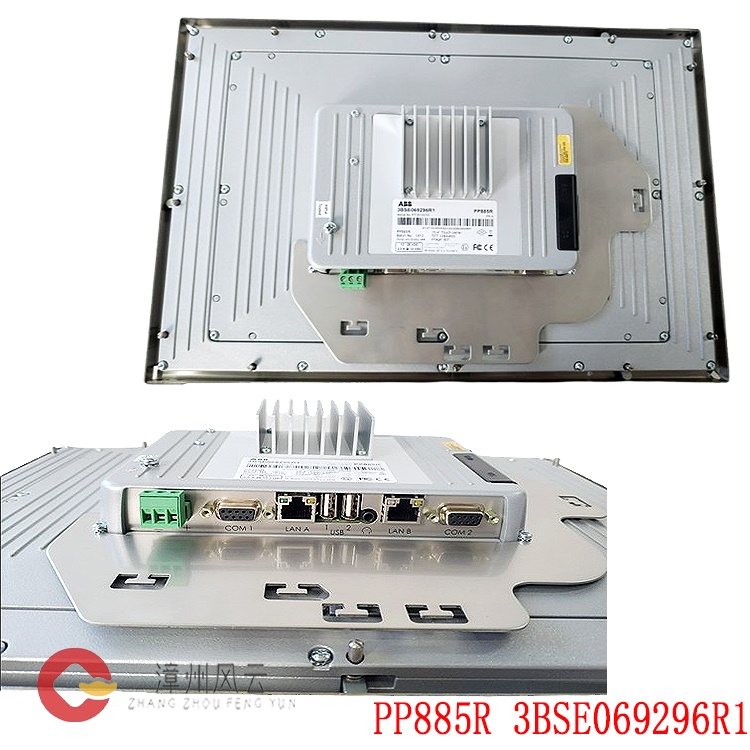

　　Communication Layer: Dual Ethernet ports (10/100 Mbit/s and 10/100/1000 Mbit/s), one RS232 port, one isolated RS422/485 port, three USB 2.0 ports, and an SD card slot. Includes over 50 built-in communication drivers, enabling simultaneous connections to ABB systems (AC800M, AC500, 800xA, Freelance) and third-party devices such as Siemens S7, Rockwell, Modbus RTU/TCP, Omron, Mitsubishi, and OPC DA/UA; it can also function as a gateway to relay signals between multiple controllers. Alarms can be transmitted to other panels, printers, mobile phones (via SMS), and email; supports Web Server and VNC remote access.

　　Structure and Protection: Gray powder-coated aluminum housing; front panel protection rating of IP66 (NEMA 4X); operating temperature range of -30 to +70°C; vibration resistance of 4g RMS and shock resistance of 40g; storage temperature range of -40 to +85°C.

II. Application Areas

　　Marine & Offshore: Monitoring for bridges, engine rooms, and deck equipment; integrated ship automation systems; dynamic positioning (DP) operator stations;

　　Offshore Oil & Gas: Process monitoring and equipment control for semi-submersible or fixed platforms, FPSOs, and wellhead platforms;

　　Hazardous Areas: Oil & gas, petrochemical, and chemical sites rated ATEX/IECEx Zone 2 or UL Class I Div. 2;

　　Onshore Heavy Industry: Metallurgy, mining, papermaking, power generation (thermal, biomass, wind), water treatment, and food & beverage;

　　Harsh Outdoor Environments: Outdoor equipment exposed to extreme temperature fluctuations, strong vibration, salt spray/humidity, dust, and direct sunlight.

　　III. Usage

　　Engineering Configuration: Create projects on a PC using Panel Builder 800 (V6); design screens, bind tags, and configure alarms, recipes, trends, and user permissions; includes a built-in template library and supports "aliased screen" reuse to minimize redundant development;

　　Download & Deployment: Download projects to the panel via Ethernet or USB; supports offline and online simulation to verify screen logic without a controller; projects can be fully backed up on the panel with integrity checks;

　　Operation: Operators navigate via action menus, scrolling panels, and icons, performing tasks based on assigned permissions; alarm bars, trends, reports, and audit logs are accessible at any time;

　　Maintenance & Upgrades: Backup/restore via SD card or USB drive; configure email and SMS alarm notifications; remote viewing via Web/VNC;

　　Installation: Panel cutout dimensions of 394×270 mm; secured with mechanical clamps; supports vertical or horizontal mounting; powered by 24 VDC (18–32 V).IV. Precautions

　　Power Supply: Must be powered by 24 VDC (18–32 V) with correct polarity; the power source must be clean and well-isolated to prevent surge damage;

　　Installation: Cutout dimensions must be precise; mechanical clamps are preferred for mounting to avoid moisture or debris accumulation associated with drilling and tapping; for marine applications, protective mounting on the panel is typically required per DNV standards; note that the front panel is IP66-rated while the rear is IP20, requiring protection against dust and liquids at the rear;

　　Environment: Operating temperature range is -30 to +70°C and humidity is 5%–85% (non-condensing); do not operate outside these limits;

　　Operation: The resistive touchscreen requires pressing with a fingertip or stylus; swiping motions (as used with capacitive screens) are not supported; gloves may be worn, but avoid scratching with sharp objects; clean using a neutral detergent and a soft cloth; do not use solvents;

　　Software Version: Model PP885R 3BSE069296R1 must be configured using Panel Builder 800 V6; ensure the runtime version matches the project version, and perform a backup verification after downloading;

　　Security: Enable user group permissions and audit trails to log critical operations; using an interface in the operator's native language is recommended to reduce the risk of operational errors;

　　Hazardous Areas: When used in Zone 2 / Div. 2 areas, comply with relevant installation and wiring standards (grounding, cable shielding, isolated serial ports);

　　Spare Parts: A protective touchscreen cover (RX885/893) can be added to the front panel; use only ABB-authorized spare parts for maintenance. V. Problems Solved

　　Frequent HMI failures in harsh environments — Aluminum housing, IP66 rating, wide operating temperature range, and vibration/shock-resistant design directly withstand vibration, salt spray, temperature extremes, dust/liquids, and electromagnetic interference;

　　Compliance with marine and explosion-proof standards — A single panel meets certifications from five major classification societies (DNV, GL, ABS, LR, KR) as well as hazardous area certifications, eliminating the need for separate devices for marine and explosion-proof requirements;

　　Visibility issues (too bright at night, glare during the day) — Dimmable to below 1 cd/m² for night navigation; high-brightness version (1000 cd/m²) ensures readability in direct sunlight;

　　Fragmented operation of multi-brand onboard equipment — Supports over 50 communication drivers plus OPC UA, enabling unified monitoring of ABB and third-party control systems on a single screen;

　　Slow alarm response or missed alarms — Features alarm bars, email/SMS push notifications, and Web/VNC remote access to ensure rapid alarm delivery;

　　No record of operator errors — Tiered user permissions and audit trails ensure a complete record of all operations;

　　Long engineering cycles — Templates, aliased screens, offline simulation, and multi-language support significantly reduce configuration and commissioning time.

　　VI. Advantages

　　In short: A combination of "most rugged hardware + most comprehensive certifications + most open communication." It offers top-tier specifications for temperature, vibration, ingress protection, marine classification, and explosion-proof certification. Leveraging the .NET open platform and over 50 communication drivers, it integrates seamlessly with ABB 800xA, Freelance, and AC800M systems as well as mainstream third-party PLCs, and can also function as a gateway. For projects in marine, offshore, oil & gas, and hazardous area sectors, it represents a highly reliable, "one-device-fits-all-scenarios" solution.
