The GE serial communication input/output module supports 16 independently configurable analog channels, each of which can be defined as a thermocouple, RTD, voltage (±5V/±10V), current (4-20mA input/0-20mA output), digital I/O, or pulse accumulator. It is compatible with a variety of sensors and actuators, supports hot-swappable replacement, and features automatic reconfiguration to reduce downtime risks. Built-in diagnostic functions (such as open circuit and over-range detection) are monitored in real time via ControlST, supporting predictive maintenance.

　　Many products are not yet listed. Please contact us for more product information.

　　If the product model differs from the displayed image, the model number shall prevail. Please contact us for specific product images; we will arrange to take photos in our warehouse for confirmation.

　　We have 76 shared warehouses worldwide, so it may sometimes take several hours to return an accurate reply. We apologize for any inconvenience. Of course, we will respond to your inquiries as soon as possible.

　　Other names for IS420PUAAH1A:

　　Editable Controller IS420PUAAH1A

　　IS420PUAAH1A General Purpose Input/Output Module

　　Analog Controller IS420PUAAH1A

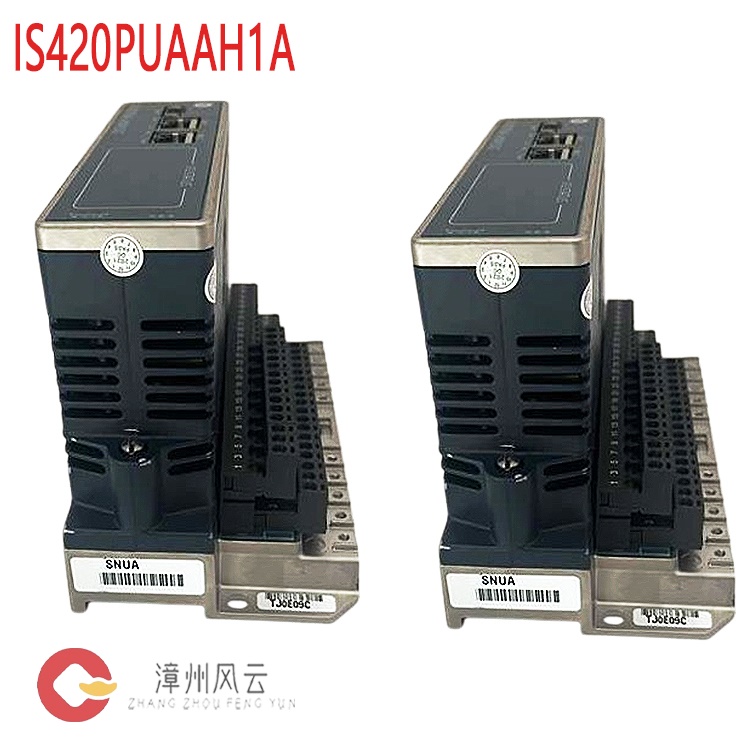

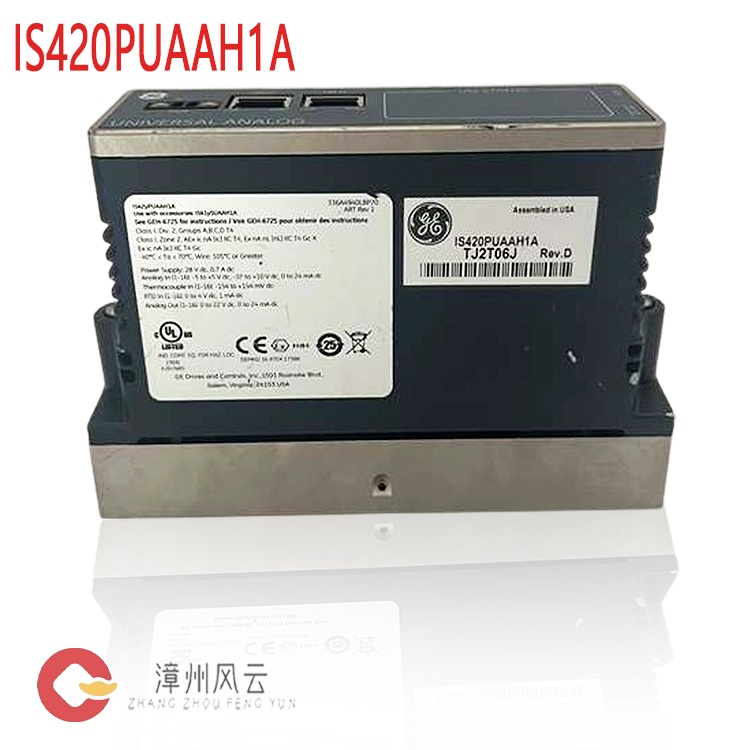

　　The IS420PUAAH1A is a general purpose serial communication input/output module in the GE Mark VIe control system, designed specifically for industrial automation and process control, featuring high precision, high reliability, and flexible configuration capabilities.

　　Product Positioning and Core Features

　　Module Positioning: Belongs to the GE Mark VIe/VIeS control system, used as a general-purpose I/O package (simplex). It supports 16 independently configurable analog channels, each of which can be defined as a thermocouple, RTD, voltage (±5V/±10V), current (4-20mA input/0-20mA output), digital I/O, or pulse accumulator, adapting to various sensors and actuators.

　　Module Type: General-purpose I/O package (simplex), supporting 16 configurable analog simplex channels. Each channel can be independently configured via ControlST software as a thermocouple, RTD, voltage (±5V/±10V), current (4-20mA input/0-20mA output), digital I/O, or pulse accumulator, adapting to diverse field signal requirements.

　　High Precision and Response: Measurement accuracy better than 0.1%, normal scan time approximately 5ms, frame rate up to 10ms, supports HART protocol, ensuring accurate real-time control and monitoring.

　　Technical Parameters and Performance Indicators

　　Channel Configuration:

　　16 simplex analog channels, each independently configurable as a thermocouple, RTD, 4-20mA current input, 0-20mA current output, ±5V/±10V voltage, digital I/O, or pulse accumulator input, supporting HART protocol options.

　　Channel grouping is achieved through independent cabling via the "black section," enabling channel-by-channel debugging and reducing rack space usage.

　　Performance Parameters:

　　Accuracy and Speed: Measurement accuracy better than 0.1%, normal scan time 5ms, frame rate 10ms, supports a maximum frame rate of 10ms.

　　Environmental Adaptability: Operating temperature -40 to 158℉ (-40 to 70℃), relative humidity 5%-95% (non-condensing), resistant to vibration and harsh industrial environments.

　　Power Consumption and Power Supply:

　　Static power consumption is 8.1W. Power consumption per channel varies depending on the mode (e.g., 0.02W in TC mode, 0.68W for mA output). Requires a stable 28V DC power supply and reliable grounding.

　　Special Features:

　　Hot-swappable support allows for module replacement during system operation, reducing downtime risk.

　　Automatic reconfiguration function adapts to firmware updates or module replacement scenarios.

　　Onboard diagnostics (open circuit, over-range, channel health status) provide real-time feedback to ControlST or HMI via IONet.

　　Environmental Adaptability: Operating temperature range -40°C to 70°C (-40°F to 158°F), humidity 5%-95% (non-condensing), strong anti-interference capability, suitable for harsh industrial environments such as peak-shaving power plants and combined cycle facilities.

　　Communication Capabilities:

　　Interfaces: Dual RJ-45 IONet Ethernet ports, supporting dual-redundant network architecture, compatible with ControlST V07.02.00C and above.

　　Protocols: IONet (Ethernet-based), HART (mode-selectable), supporting high-speed deterministic communication with Mark VIe controllers (such as UCSC).

　　Installation and Maintenance Advantages

　　Installation Method: DIN rail or panel mounting, approximately 16×12×8cm in size and 0.5kg in weight, supporting rack or wall-mount deployment.

　　Commissioning Ease: Independent cabling design ("black section") allows for channel-by-channel commissioning, reducing system footprint and accelerating project deployment.

　　Maintenance Features: Supports hot-swappable replacement; automatic reconfiguration reduces downtime risk; built-in diagnostic functions (such as open circuit and over-range detection) are monitored in real-time by ControlST, supporting predictive maintenance.

　　Application Scenarios and Industry Adaptability

　　Application Scenarios and Advantages

　　Typical Applications:

　　Industrial Automation: Manufacturing production lines, robot joint drives, servo systems, motor control.

　　Energy Sector: Gas/steam turbine control, power plant BOP systems, emission monitoring, cooling tower auxiliary systems.

　　Process Control: Pressure/flow signal processing in petrochemical and heavy industries, and rapid response requirements for combined cycle facilities.

　　Core Advantages:

　　High Density and Flexibility: 16 channels integrated in a single module, supporting mixed signal types, reducing the number of dedicated modules and spare parts inventory.

　　High Reliability: Passes rigorous environmental testing, supports rapid commissioning and maintenance, reducing the risk of production loss.

　　Compatibility: Seamlessly integrates with Mark VIe/VIeS systems, supports HART communication, and is compatible with various field devices.

　　Extended Compatibility: Can work with other GE modules (such as the IS420YAICS1B analog input module and IS420YDOAS1B discrete output module), integrated into the Mark VIe redundant architecture, and compatible with SIL-level safety systems (such as Mark VIeS).

　　Configuration and Compatibility Requirements

　　Software Dependencies: Requires ControlST V07.02.00C or later, and PUAA firmware V05.03.00C or later.

　　Hardware Compatibility: Requires compatibility with IONet switches (e.g., IS420ESWBH3A) and terminal boards (e.g., IS410SUAAH1A), ensuring power stability and grounding integrity.

　　Installation and Maintenance Guidelines

　　Installation Requirements:

　　Confirm IONet network compatibility and ControlST version (≥V7.02.00C), and match PUAA firmware (≥V05.03.00C).

　　Ensure 28V DC power supply stability and grounding integrity, allocate sufficient rack space, and avoid blocking ventilation openings.

　　Debugging and Maintenance:

　　During the debugging phase, configure signal types, ranges, and alarm thresholds channel by channel using ControlST. After simulating signal verification, perform on-site loop checks.

　　Regular maintenance includes: weekly monitoring of IONet status and diagnostic information, semi-annual checks for terminal corrosion/loosening, and annual calibration checks (injecting known signals and comparing readings).

　　Supports hot-swap replacement; utilizes the automatic reconfiguration function to quickly restore operation; verifies status through functional testing.

　　Compatibility and Expansion

　　System Compatibility: Compatible with Mark VIe and Mark VIeS control systems, and can be used with IS420UCSBH4A (controller processor), IS420YDOAS1B (discrete output module), etc.

　　Expansion Capabilities: Supports module cascading and redundant configuration, adapting to complex system integration needs, such as distributed I/O network expansion.

　　Summary: The IS420PUAAH1A is the core I/O module of the GE Mark VIe control system. With its high precision, high flexibility, strong environmental adaptability, and hot-swappable capability, it has become the preferred solution in industrial automation and process control, especially excelling in scenarios requiring rapid response, high reliability, and multi-signal type integration.
