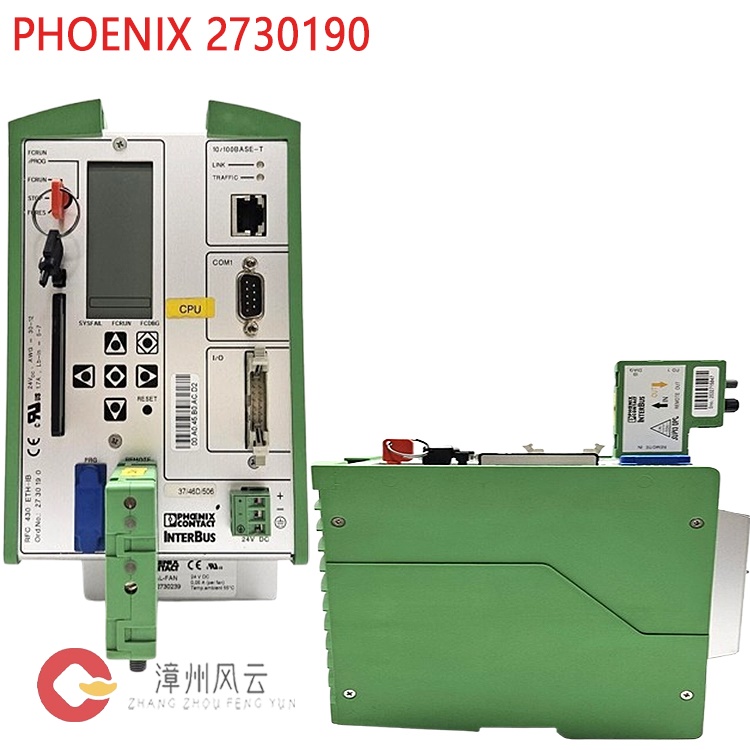

The Phoenix 2730190 ETH-IB Controller is an RFC 430 ETH-IB remote fieldbus controller from Phoenix Contact. As an INTERBUS master, it supports a maximum of 8192 bits of process data, can connect 512 devices (including 254 remote devices/bus segments), supports five programming languages of the IEC 61131-3 standard (IL, ST, FBD, LD, SFC), controls 16 tasks, and integrates a real-time clock (with battery backup).

　　Many products are not yet listed. Please contact us for more product information.

　　If the product model differs from the displayed image, the model number shall prevail. Please contact us for specific product images; we will arrange to take photos in our warehouse for confirmation.

　　We have 76 shared warehouses worldwide, so it may sometimes take several hours to accurately return the information to you. We apologize for the inconvenience. Of course, we will respond to your inquiries as soon as possible.

　　2730190 Other Names:

　　Bus Ethernet Remote Field Controller 2730190

　　2730190 Ethernet Remote Field Controller

　　Editable Controller 2730190

　　The Phoenix 2730190 ETH-IB Controller is an RFC 430 ETH-IB remote fieldbus controller launched by Phoenix Contact, belonging to the core control equipment in the field of industrial automation.

　　Product Overview

　　Core Functions: Integrated Ethernet (1x10/100), INTERBUS master station, IP20 protection rating, supports distributed modular automation systems, suitable for industrial control, process monitoring, machinery manufacturing, and other scenarios.

　　Physical Attributes:

　　Dimensions: 124mm × 185mm × 190mm (without fan), height increases to 210mm with fan; weight 1550g (without fan) or 1700g (with fan).

　　Protection Rating: IP20, suitable for industrial environments (operating temperature 0°C~55°C, storage temperature -25°C~70°C, humidity 5%~90% non-condensing).

　　Power Supply: 24V DC, typical power consumption 20W, voltage range 19.2V~30V DC, supports pluggable screw terminals.

　　Technical Specifications and Features

　　Communication Capabilities:

　　Ethernet Interface: RJ45 Ethernet interface, supports TCP/IP protocol, enabling remote programming, operation, visualization, and data exchange via Ethernet.

　　Fieldbus: As an INTERBUS master station, it supports a maximum of 8192 bits of process data and can connect 512 devices (including 254 remote devices/bus segments).

　　Serial Interface: The D-SUB-9 interface supports RS-232 communication with a transmission speed of 10/100 MBit/s.

　　Distributed Control Architecture: As a remote field controller (RFC), it supports modular, distributed automation systems, mounted via DIN rail, and provides PC-based control performance and network connectivity.

　　Network Integration Capabilities:

　　Integrates Ethernet TCP/IP protocol, supporting standardized coupling with visualization software (such as PC WORX) through an OPC server, enabling remote programming, operation, and data exchange.

　　Supports IEC 61131-5 standard TCP/IP Send/Receive modules for inter-device variable exchange and time synchronization.

　　Programming and Software:

　　Standard Support: Compliant with IEC 61131-3 standard, supporting all five programming languages (IL, ST, FBD, LD, SFC).

　　Development Tools: Configuration and programming are performed using PC WORX automation software, supporting local serial port or Ethernet connection, and integrating a real-time clock (with battery backup).

　　Diagnostic Tools: Supports DIAG+ diagnostic tool (version 1.14 or later).

　　Digital I/O: 5 digital inputs (inline potentiometers), 3 digital outputs (pull-back spring connections), maximum output current 500mA per channel.

　　Memory and Processing Capacity:

　　2MB program memory, 4MB data memory, 96KB reserved data memory (NVRAM).

　　Supports five programming languages according to IEC 61131-3 standard (IL, ST, FBD, LD, SFC), 16 control tasks, integrated real-time clock (with battery backup).

　　Hardware Configuration:

　　Interfaces: 1 D-SUB-9 female connector (INTERBUS master), 1 D-SUB-9 male connector (parameterization/diagnostics), 1 RJ45 Ethernet interface, 5 digital inputs, 3 digital outputs (maximum 500mA/channel).

　　Power Supply: 24V DC power supply, typical power consumption 20W, voltage range 19.2V-30V DC, supports wide voltage input.

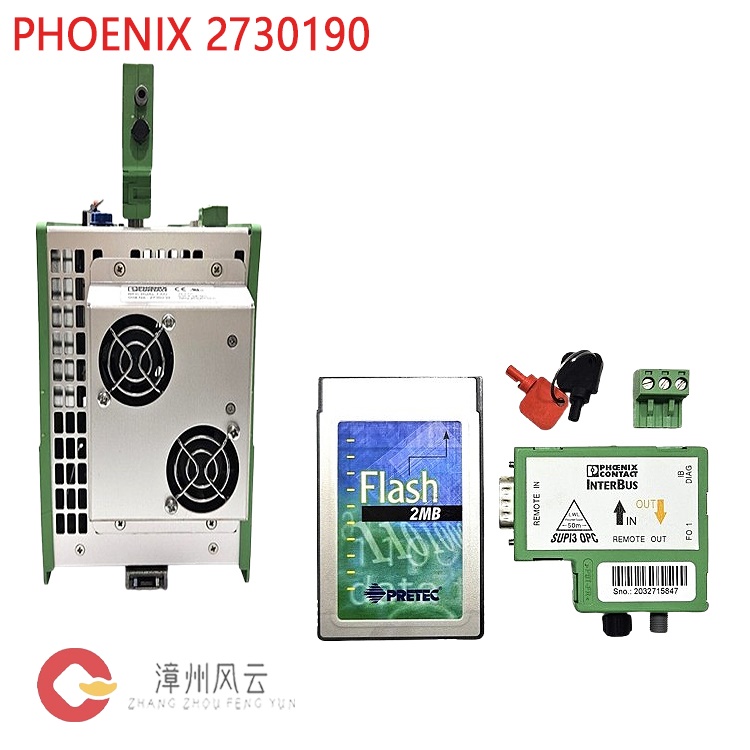

　　Memory: Pluggable MC FLASH parameterized memory, supports rapid configuration and data backup.

　　Physical and Environmental Parameters:

　　Dimensions and Weight: 124mm × 185mm × 190mm (without fan), weight approximately 1550g; with fan module, height 210mm, weight 1700g.

　　Protection Rating: IP20, suitable for indoor industrial environments.

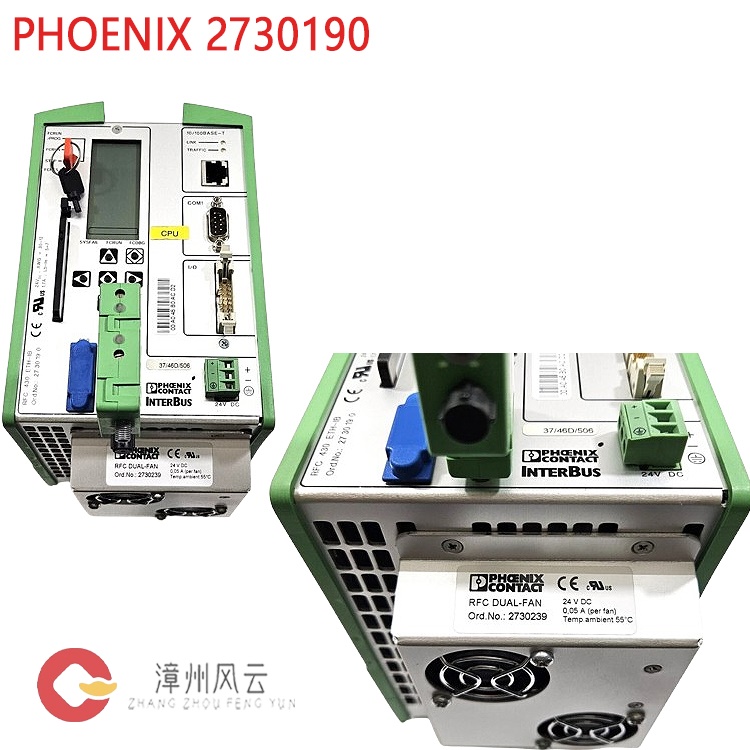

　　Environmental Adaptability: Operating temperature 0°C-55°C (with fan module, can operate above 45°C), storage temperature -25°C-70°C, humidity 5%-90% non-condensing, vibration/shock resistance conforms to IEC standards.

　　Expansion and Compatibility:

　　Supports exchanging coupled variables via TCP/IP Send/Receive modules to achieve distributed system configuration.

　　Compatible with PC/104 international standards, can be embedded in embedded PC systems.

　　Compliant with RoHS, REACH, and other environmental standards, with an environmentally friendly service life of 50 years.

　　Application Scenarios

　　Industrial Automation: Suitable for distributed control systems (DCS), PLC remote control, and automated factory production lines.

　　Process Control: Enables remote monitoring and data acquisition in energy, chemical, and water treatment industries.

　　Machinery Manufacturing: Supports high-precision control of machine tools, packaging equipment, printing machinery, etc.

　　Network Integration: Seamlessly interfaces with host computers and visualization software (such as INTERBUS OPC servers) via Ethernet for remote diagnostics and maintenance.

　　Advantages Summary

　　Networking Capabilities: Integrates Ethernet and fieldbus, supporting remote operation and distributed control, reducing wiring costs.

　　Standardized Programming: Compliant with IEC 61131-3 standard, compatible with multiple programming languages, lowering the development threshold.

　　Industrial-Grade Reliability: Wide temperature range, vibration resistant, and dustproof design, adaptable to harsh industrial environments.

　　Flexible Expansion: Pluggable memory and modular design facilitate maintenance and upgrades.
